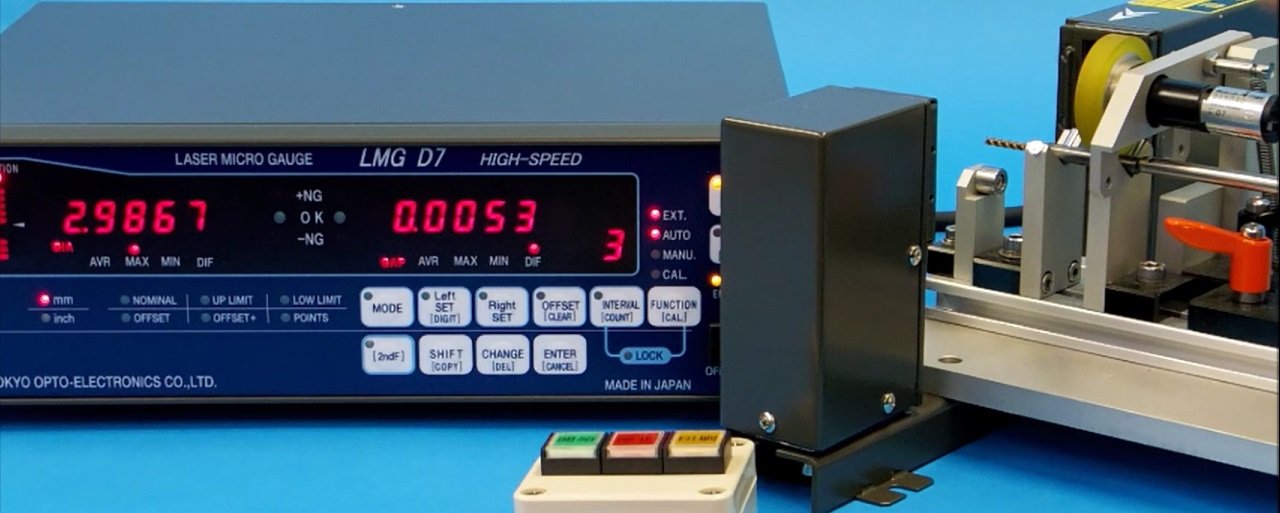

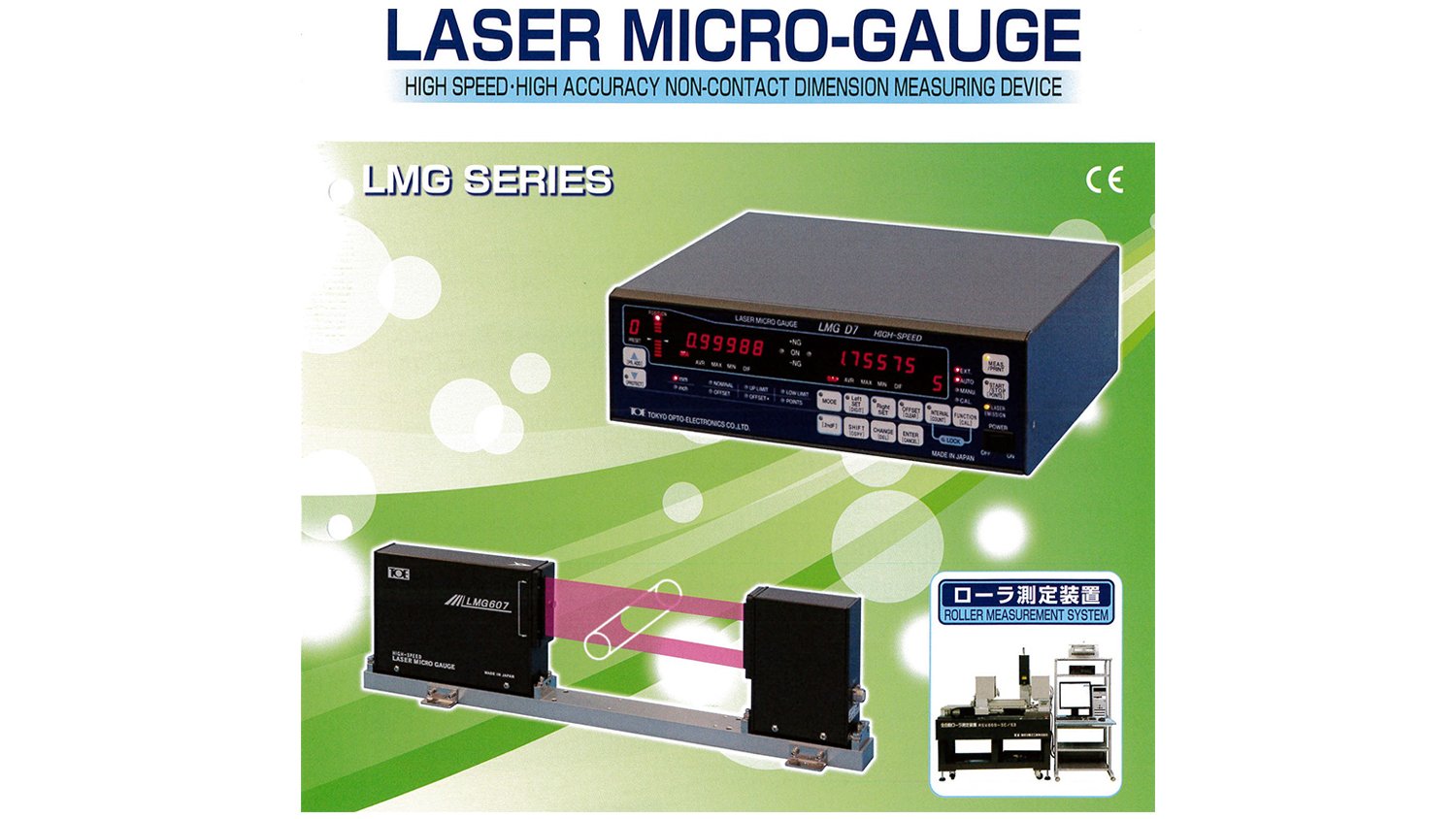

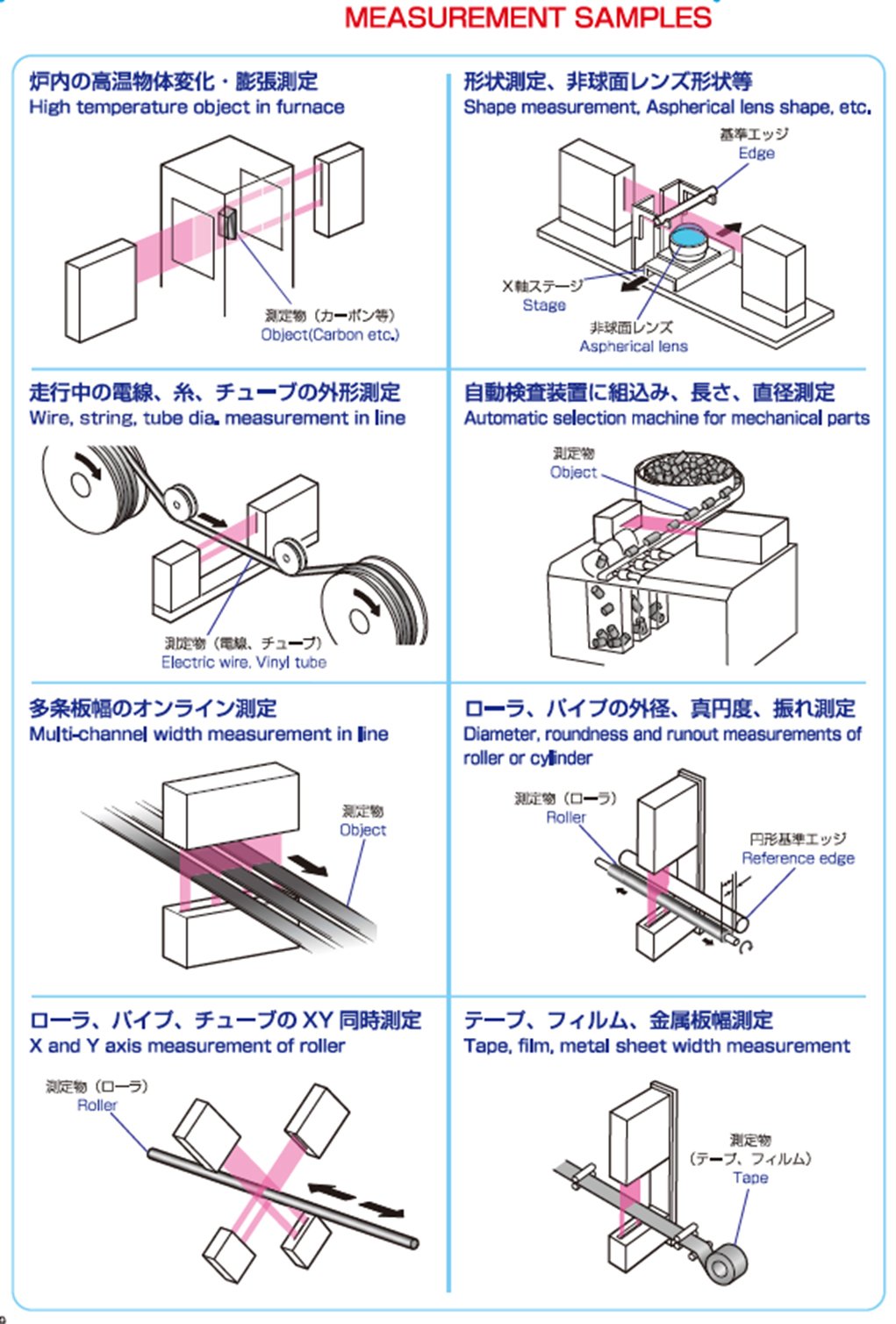

TOE Laser Micro Gauge
| Items / Model | LMG 027 | LMG 127 | LMG 307 | LMG 607 | LMG 807 | LMG 1507 | LMGW 2207*6 |
|---|---|---|---|---|---|---|---|
| Light source | Visible Diode Laser | – | – | – | – | – | – |
| Wave Length | 655nm | – | – | – | – | – | – |
| Measuring range (mm) | 0.01 – 2 | 0.05 – 12 | 0.2 – 30 | 0.5 – 60 | 0.5 – 80 | 0.7 – 150 | 0.7 – 220 |
| Resolution (um) | 0.01 | 0.01 | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 |
| Measuring area (mm / Horizontal) | 0*2 | 4(2)*3 | 10 | 30 | 40 | 20 | 40 |
| Reproducibility (um) | +0.5 | +1 | +2 | +4 | +5 | 12(+5)*4 | +15(+5)*5 |
| Accuracy (um) | Linearity | +0.3 | +0.3 | +1 | +2.5 | +4 | +8(+4)*4 |
| Repeatability (um) | 0.03 | 0.04 | +0.10 | +0.35 | 0.6 | +2(+1)*4 | – |
| Scanning freq. (Hz) | – | – | – | 3600 S | – | – | – |
| Scanning speed (m/s) | 85 | 226 | 355 | 707 | 990 | 1130 | 990 |
| Operation temp. (°C) | – | – | – | 0~45 | – | – | – |
| Transmitter | – | 2.2 | 4.0 | 7.5 | 20.0 | – | – |
| Receiver | 2.0 | 2.5 | 2.7 | 1.0 | 2.0 | 4.5 | 6.0 |
| Weight (Kg) | Bace plate | – | 1.6 | 3.0 | 4.5 | 7.0 | – |
| Total (Kg) | 2.0 | 2.5 | 2.7 | 4.8 | 9.0 | 16.5 | 33.0 |
For EndMill application (Diameter and Runout)
