Kosaka Portable & PC Based Roughness Tester
Kosaka K+ Portable Roughness Tester
| Parameter | Details |
|---|---|
| Detection Method | Piezo Electric |
| Stylus Type | Skid |
| Stylus Radius | 5µm x 90° |
| Measuring Force | 2mN |
| Measuring Range | 200µm |
| Drive Length | 5mm |
| Measuring Speed | 2.0mm/s |
| Cut-off | 0.8mm |
| Data Output | mini USB |

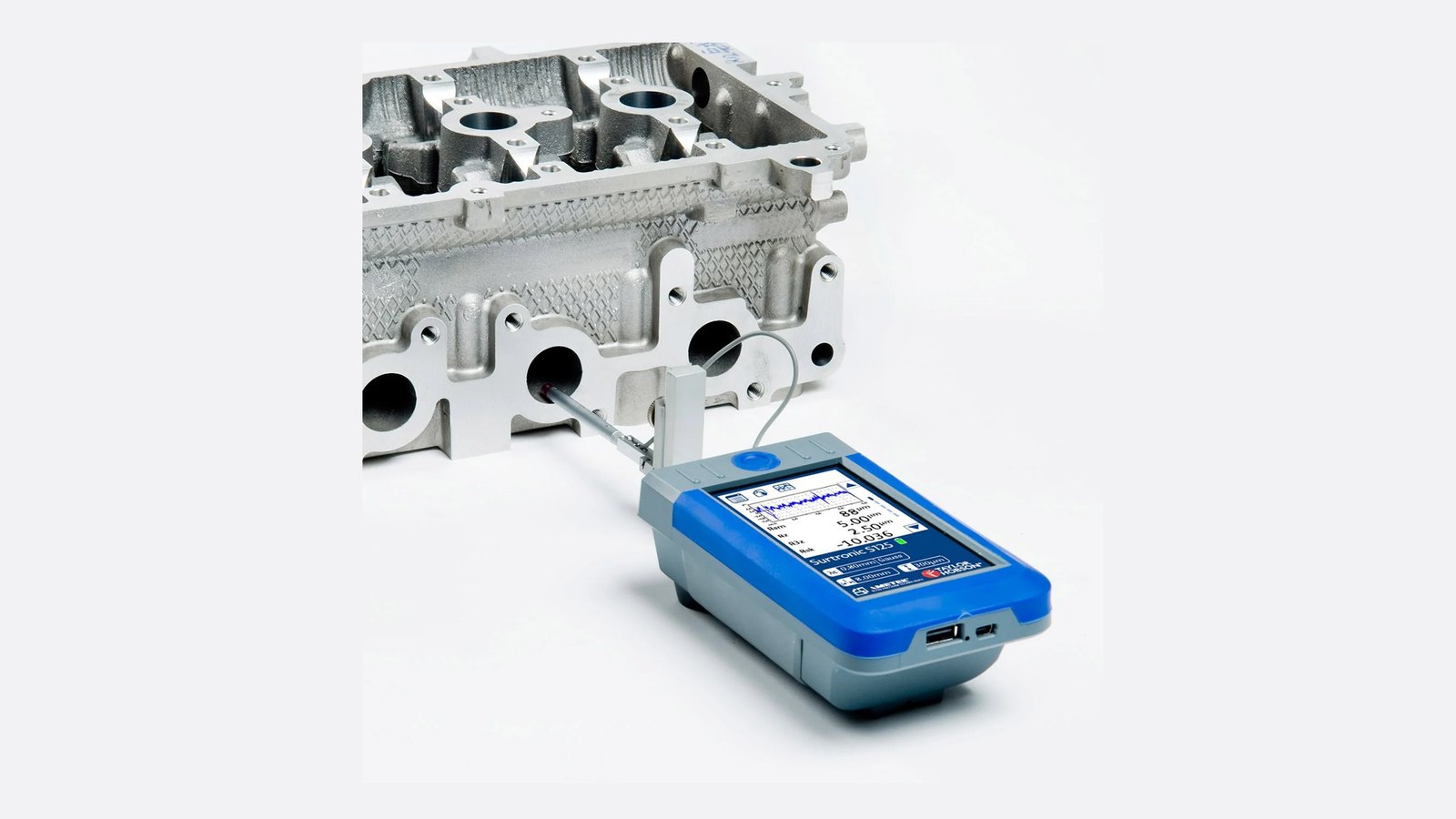

Kosaka Smart Surf Portable
| Parameter | Details |
|---|---|
| Detection Method | Differential Transformer |
| Stylus Type | Skidless |
| Stylus Radius | 2/5/10 µm x 90° |
| Measuring Force | 1.5-3.0mN |
| Measuring Range | 400, 100, 10µm |
| Drive Length | 25.5mm |
| Measuring Speed | 1.0mm/s |
| Cut-off | 0.25/0.8/2.5mm |
| Data Output | USB |
