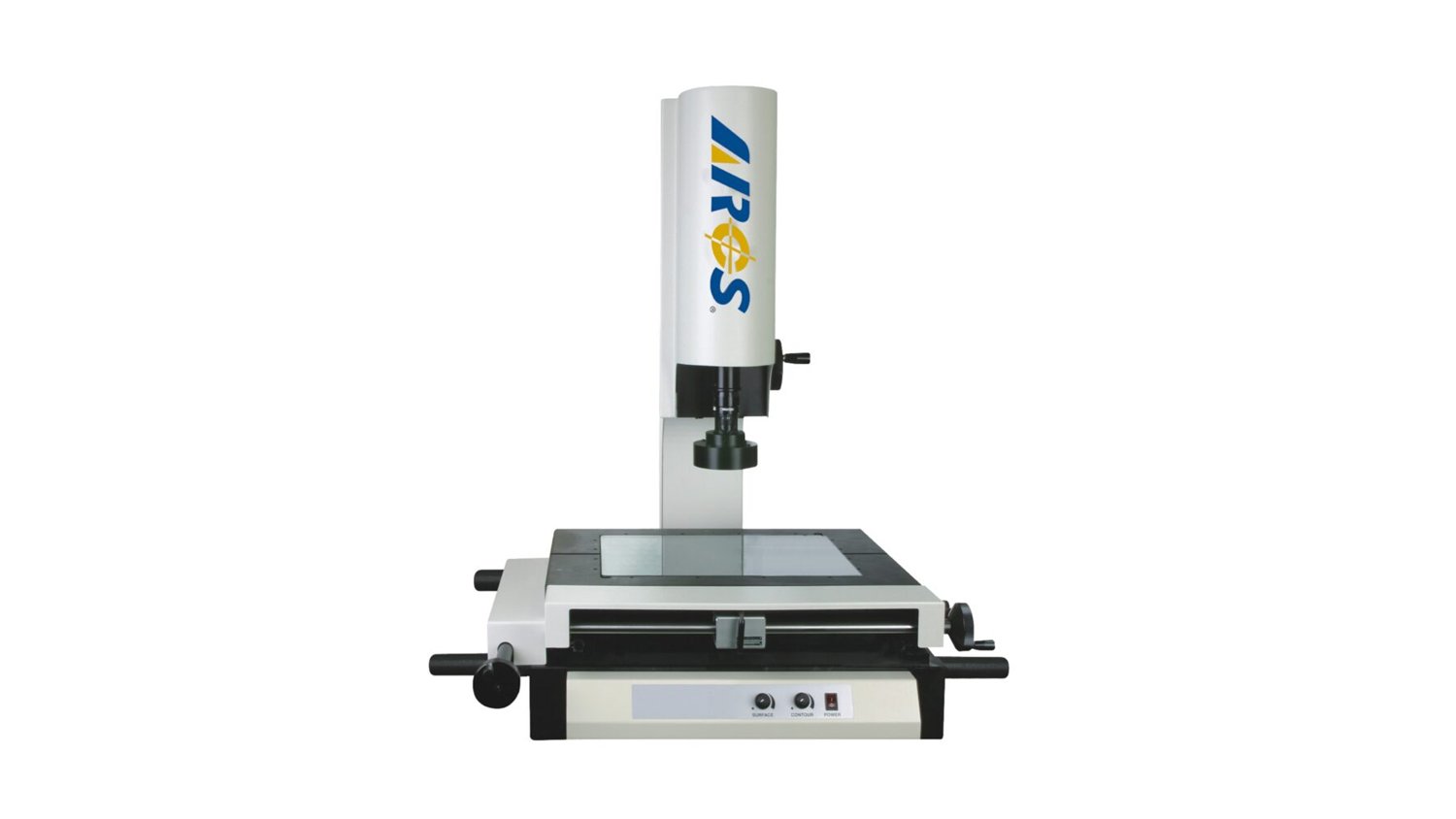

Arcs Video Measuring SVP Series
Model: SVP-2010
| Specification | Details |
|---|---|
| Stage Size (mm) | 355 x 255 |
| Stage Loading Capacity (Kgs) | 25 |
| Dimension (mm) | 585 x 600 x 960 |
| Measuring Range X-Y-Z (mm) | 200x100x200 |
| Magnification | 0.7-4.5 (17.5-112.5 Zoom Lens) |
| Length Accuracy (microns) | (3+L/200) |
| Repeatability (microns) | 0.002 |
| Net Weight | 130 |
| Camera | Japanese Make |
| Friction Drive | German Make |
| Software | S101 |
Model: SVP-3020
| Specification | Details |
|---|---|
| Stage Size (mm) | 505 x 355 |
| Stage Loading Capacity (Kgs) | 25 |
| Dimension (mm) | 790 x 780 x 200 |
| Measuring Range X-Y-Z (mm) | 300x200x200 |
| Magnification | 0.7-4.5 (17.5-112.5 Zoom Lens) |
| Length Accuracy (microns) | (3+L/200) |
| Repeatability (microns) | 0.002 |
| Net Weight | 185 |
| Camera | Japanese Make |
| Friction Drive | German Make |
| Software | S101 |
Model: SVP-4530
| Specification | Details |
|---|---|
| Stage Size (mm) | 705 x 505 |
| Stage Loading Capacity (Kgs) | 25 |
| Dimension (mm) | 1070 x 1090 x 970 |
| Measuring Range X-Y-Z (mm) | 450x300x200 |
| Magnification | 0.7-4.5 (17.5-112.5 Zoom Lens) |
| Length Accuracy (microns) | (3+L/200) |
| Repeatability (microns) | 0.002 |
| Net Weight | 340 |
| Camera | Japanese Make |
| Friction Drive | German Make |
| Software | S101 |
