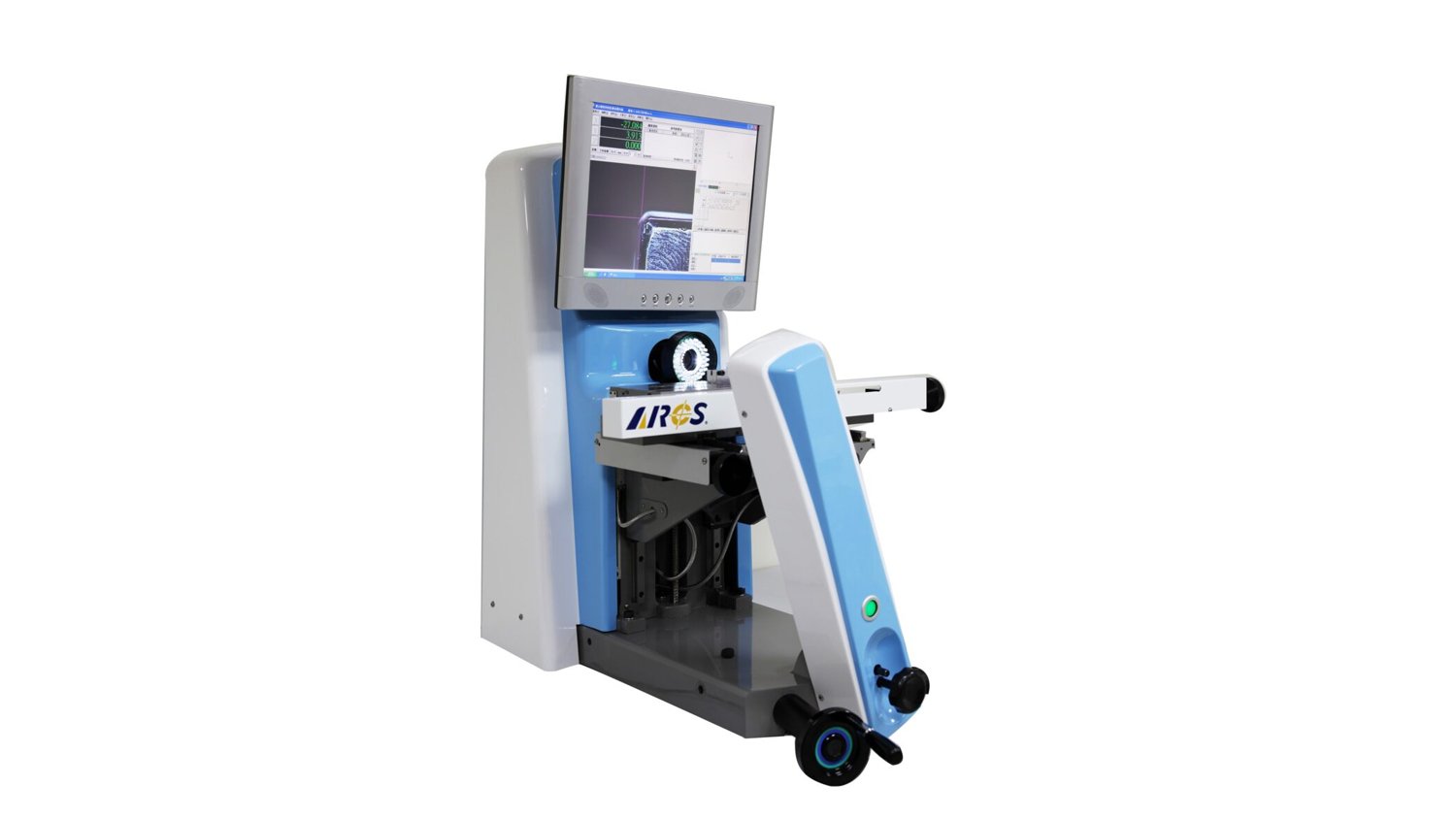

Arcs Video Measuring Machine – Horizontal Model HIM Series
Model: HIM-2015
Model: HIM-3015
| SPECIFICATION | MODEL NO | |
| HIM-2015 | HIM-3015 | |
| Stage Size (mm) | 340 x 130 | 440 x 130 |
| Stage loading Capacity(Kgs) | 25 | 25 |
| Dimension (mm) | 935 x 680 x 970 | 995 x 880 x 970 |
| Measuring Range X-Y-Z (mm) | 200x130x130 | 300x130x130 |
| Magnification | 10x – 60x Step lens | 10x – 60x Step lens |
| Length Accuracy (microns) | #(3+L/75) | *(3+L/75) |
| Repeatability (microns) | 0.003 | 0.003 |
| Net weight | 143 | 159 |
| Camera | CCD Camera | CCD Camera |
| Software | SI – 101/SI – 102 | SI – 101/ SI – 102 |
